NGM63-B
M63, 34mm-44mm Ø Black

Download Data Sheet

Full Description

Page Title

Product Information:

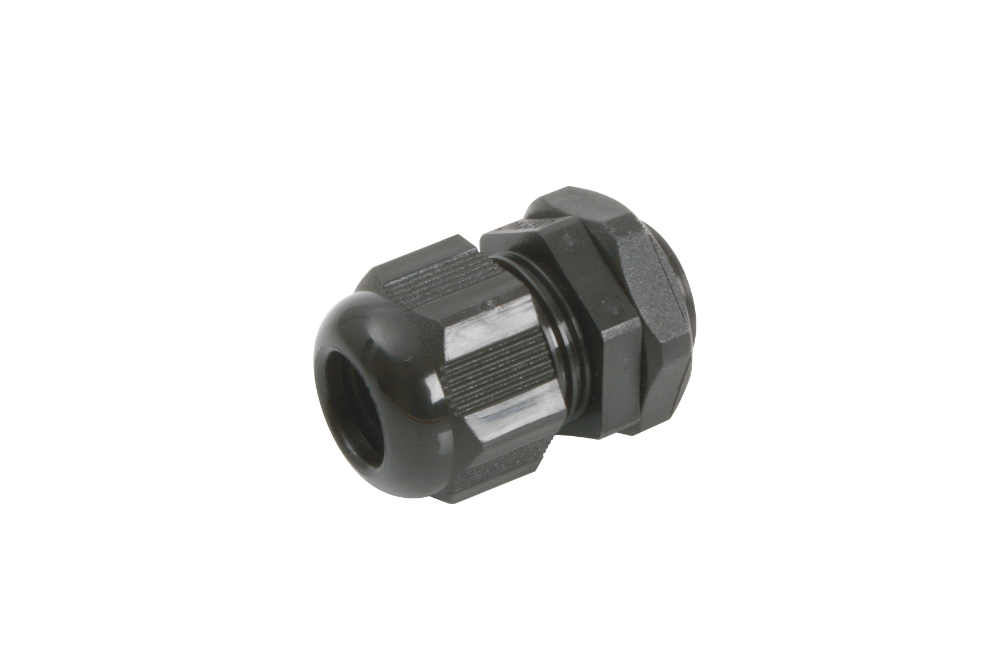

Nylon skin top (compression) gland. Available in a full range of colours and sizes.

All glands are supplied complete with a locknut and ready for installation.


Specification:

Colour: Black (RAL 9005)

Cable Range: 34-44mm Ø

Suitable Gland Spanner: 70mm

Operation Temperature: -20°C to +100°C, with integrated thermoplastic rubber seal.

Ingress Protection: IP68

Manufactured to EN 60423 and VDE, UL, ROHS, CE, PT and TUV certificated.


Click Here for Catalogue Details

Page Title

Page Title M63, 34mm-44mm Ø Black

AG: M63 x 1.5mm

H: 55mm

GL: 18mm

Page Title

Gland: Polyamide

Seal: TPV Rubber
