10-18BLFK
10mm² Cable, Ivory Insulation (German), 18mm Pin Length

Download Data Sheet

Full Description

Product Information:

Insulated bootlaces manufactured from tin plated electrolytic copper designed to reinforce fine wire strands when terminating cables into connectors.

Also suitable for tri rated cables in accordance with DIN46288 Part 4 .


Specification:

Cable Size: 10mm²

Insulation Colour: Ivory.

Temperature Rating: -40°C to +105°C.

Designed for use with flexible cables.


Suitable crimp tools can be found in the Related Products section below

Click Here for Catalogue Details

Page Title

10mm² Cable, Ivory Insulation, 18mm Pin Length

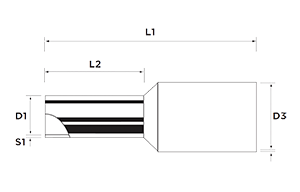

Overall Length (L1): 27.5mm

Pin Length (L2): 18mm

Pin Diameter (D1): 4.5mm

Pin Thickness (S1): 0.2mm

Insulation Diameter (D3): 7.6mm

Terminal: Tin plated electrolytic Copper.

Insulation: Halogen-free Nylon.
