TTMC4CABLEPAIR
1 Pair of Y Type MC4 Leads- 1x (F/M/M) and 1x (M/F/F)

Download Data Sheet

Full Description

Product Information:

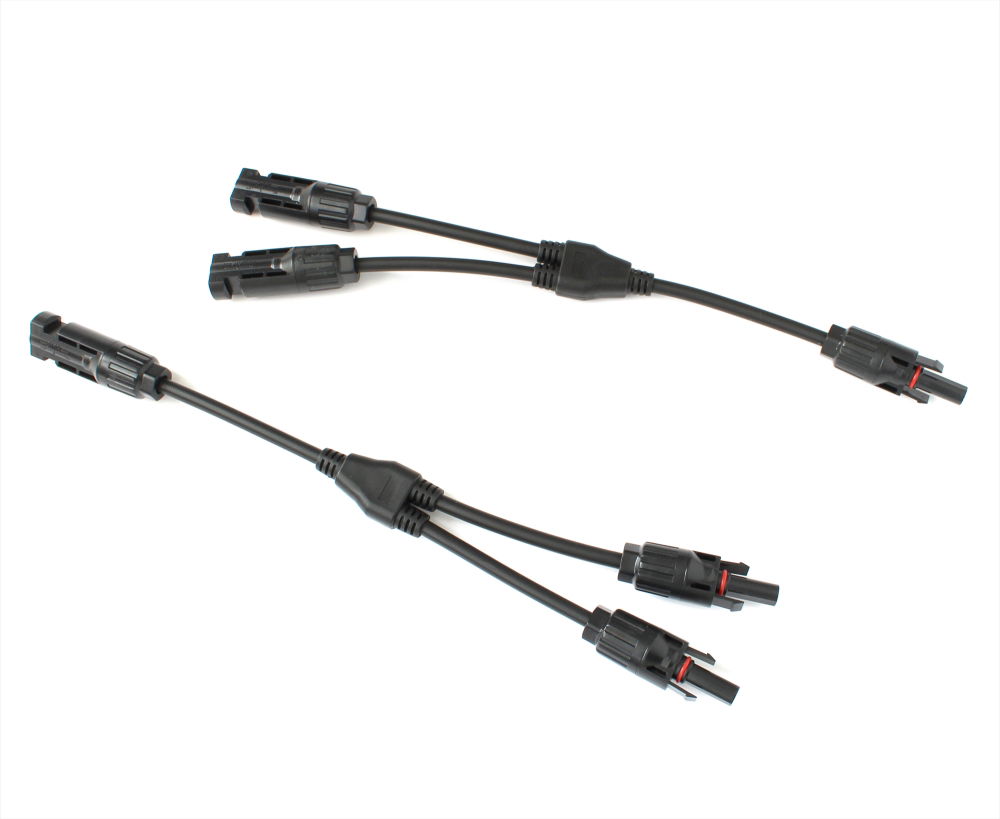

The Termination Technology TTMC4CABLEPAIR is a pair of Y shaped Solar Panel Cable Connector Leads. One female to double male and one male to double female.
Suitable for use in harsh environments with double seal rings for better waterproof and dust proof effects. Quick and simple assembly processing and simple removal of plugs without the aid of any extra instruments.


Specification:

Cable Size: 4mm².

Voltage Rating: 1000V (DC).

Rated Current: 30A

Contact Resistance: <0.2mmΩ


Ingress Protection: IP68

Safety Class:

Flame Class: UL94-V0

Temperature Range: -40 to +90°C


Withdrawal Force: >50N

Insertion Force: <50N

1 PAIR OF Y TYPE MC4 - 2 X (F/M/M) AND 1 X (M/F/F)

Insulation: Polyphenylene Oxide (PPO)
