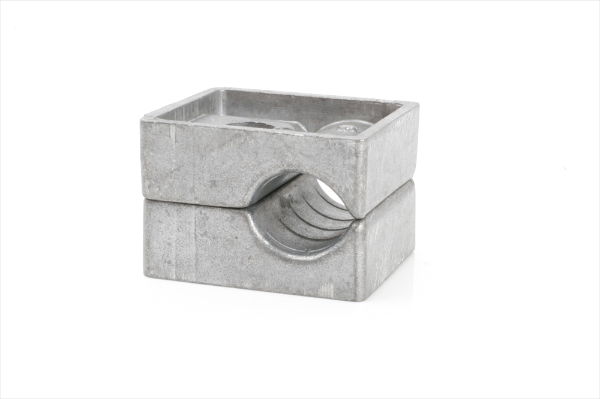

Aluminium Claw Cleat, 10-13mm Ø, M10 Bolt Hole

Download Data Sheet

Full Description

Product Information:

Single bolt Aluminium alloy Claw Cleats with a two piece single fixing design. Can be stacked to a maximum of three on one fixing.
Can be used for all types of cable routes with a plain finish for standard indoor industrial use or outdoor polluted areas.


Cable Diameter Range: 10-13mmØ.

Bolt Hole: M10.

Operating Temperature: -40°C to +150°C

Impact Resistance: >6.5kg at 300mm

Lateral Load: >4670N tested to BS EN 50368:2003 9.2

Needle Flame Tested >120 seconds to BS EN 50368:2003 6.5 & 10

These cleats do NOT come complete with fixing bolts.

Click Here for Catalogue Details

Page Title

Aluminium Claw Cleat, 10-13mm Ø, M10 Bolt Hole

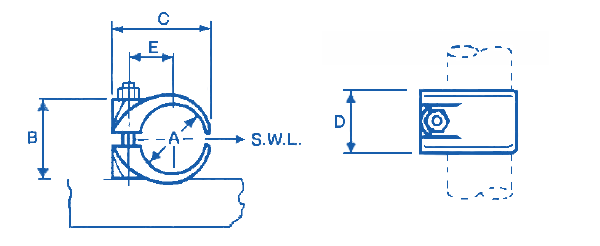

A: 10-13mm

B: 21mm

C: 38mm

D: 46mm

E: 16mm

Aluminium Alloy plain finish.

Epoxy coating available on request for more hostile conditions.
